Description

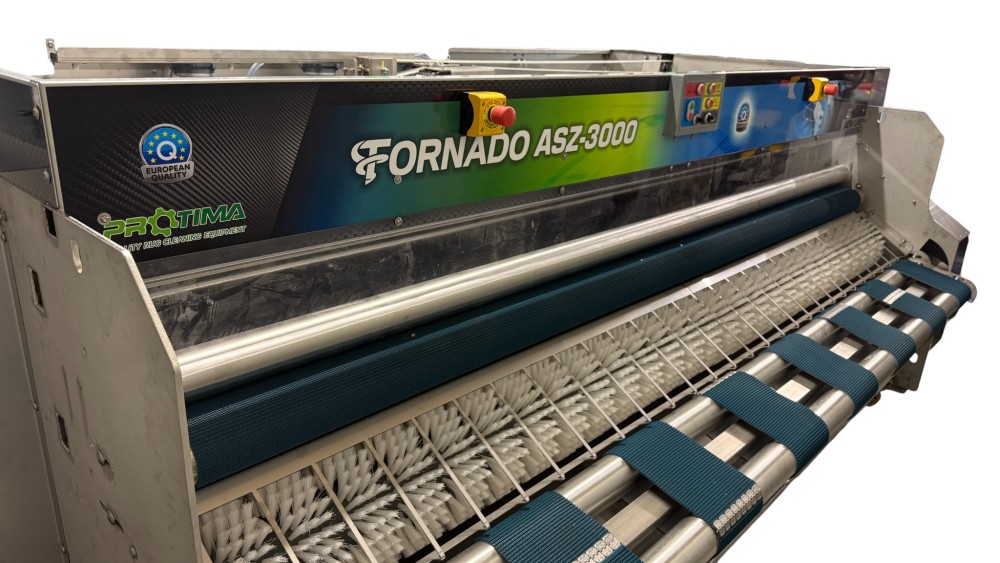

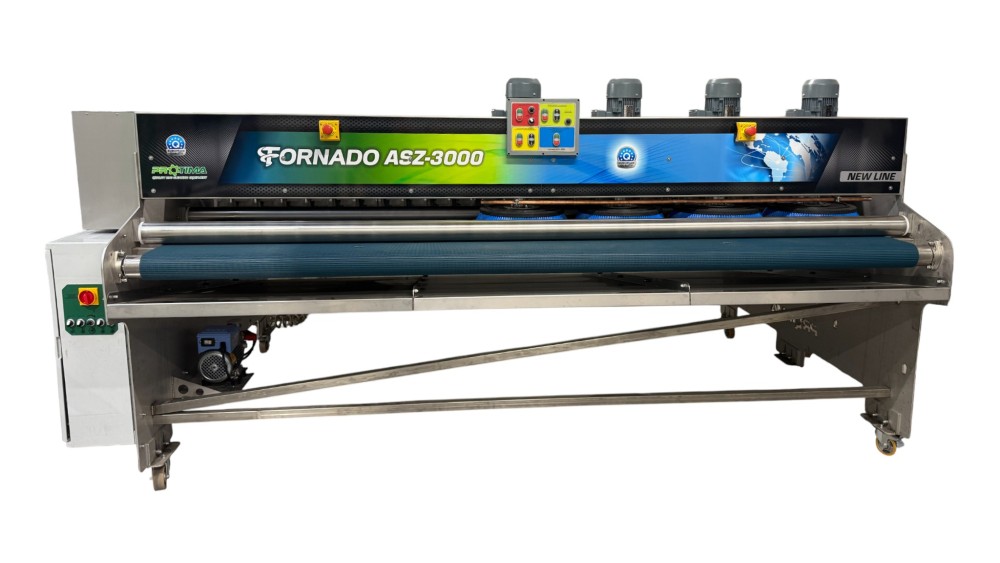

Automatic Washing Machine Tornado ASZ-3000 is perfect for washing both wet rugs (after their previous full immersion in Rug Wash Tubs Tornado P-2500 INOX or P-3300 INOX) or dry rugs just after removing dust. This model is equipped with five cleaning sections to ensure efficient and fast washing of rugs up to 3.1 meters wide. The washing process takes 3 - 6 minutes depending on the size and the degree of soiling of a rug.
These five cleaning sections are:
1. Pre-soaking and spreading detergent on dry rugs

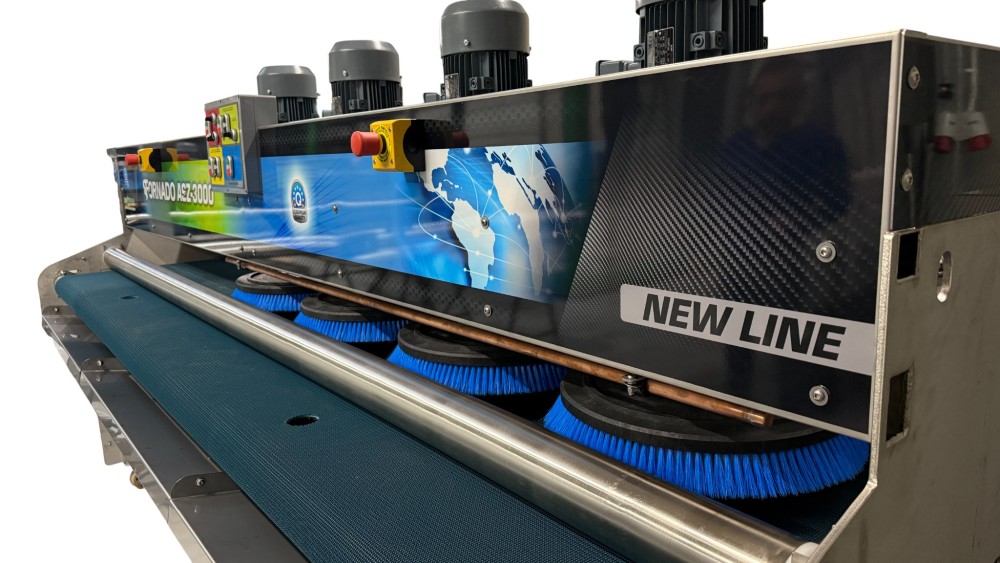

2. Brushing (430 mm wide disc brushes) with smooth pressure adjustment up to 100 kg.

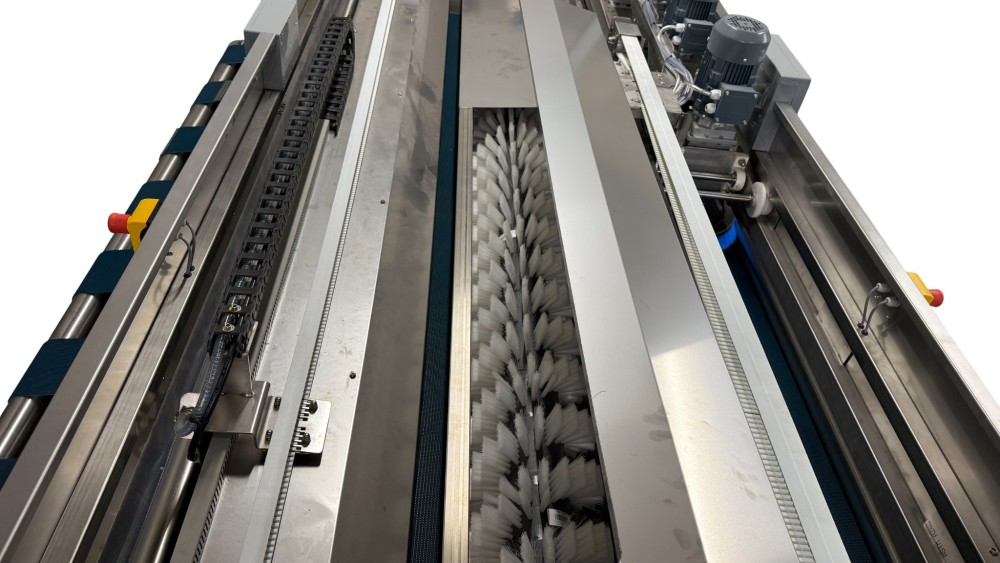

3. Cylindrical brush with pressure adjustment.
4. Squeegeeing and rinsing rugs under pressure up to 150 bar using three nozzles with simultaneous softener dispensing.
5. Scrubbing the underside of rugs with a cylindrical brush.

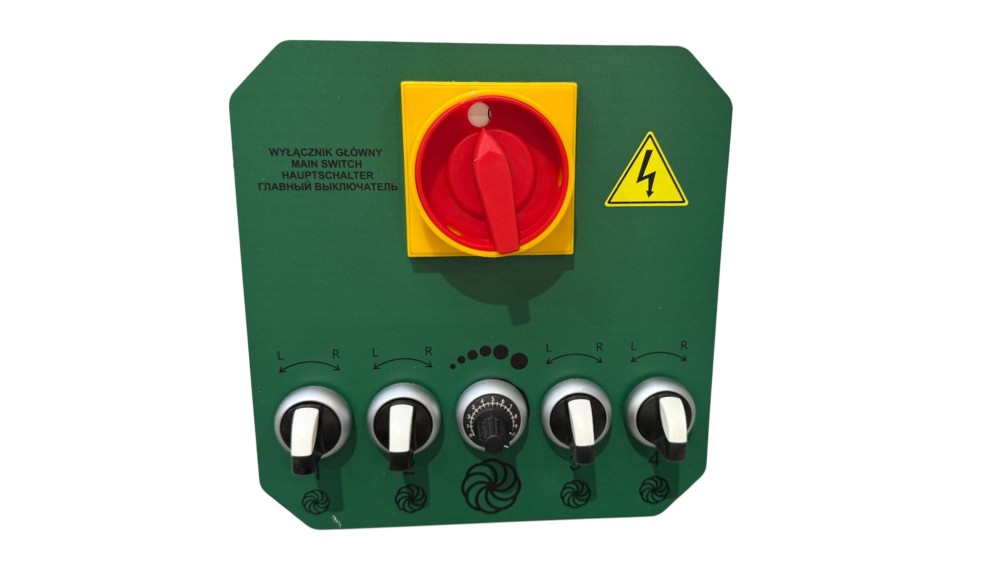

Tornado ASZ-3000 is equipped with a special carriage ramp which allows easy transferring of the rug onto a transport trolley. The Rug Trolley WT-40 INOX facilitates placing rugs into the centrifuge. There is a water capture system at the bottom of the machine, so after filtering, used water can be reused in the machine or in Rug Wash Tubs Tornado P-2500 INOX or P-3300 INOX. The device is equipped with a very simple and intuitive main control panel located at the front of the device and an auxiliary panel in the back for switching off individual sections.
Advantages
• Working capacity up to
20 rugs per hour
• Simultaneous cleaning of
1 to 3 rugs
• Continuous operation
without turning off the machine
•
Five cleaning sectons • Ramp for transferring
rugs onto a transport trolley
•
Water gathering system •
Two detergent
dispensers •

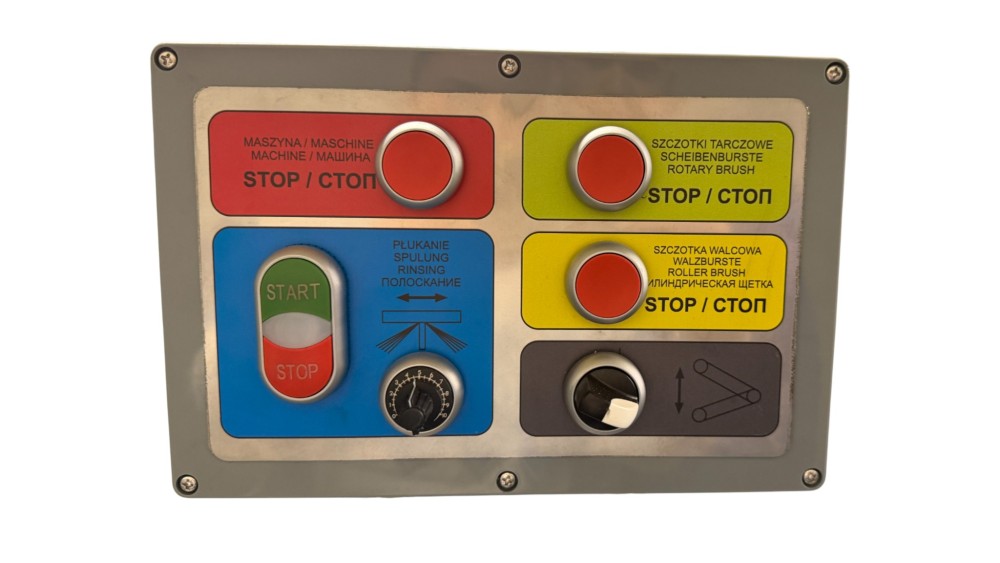

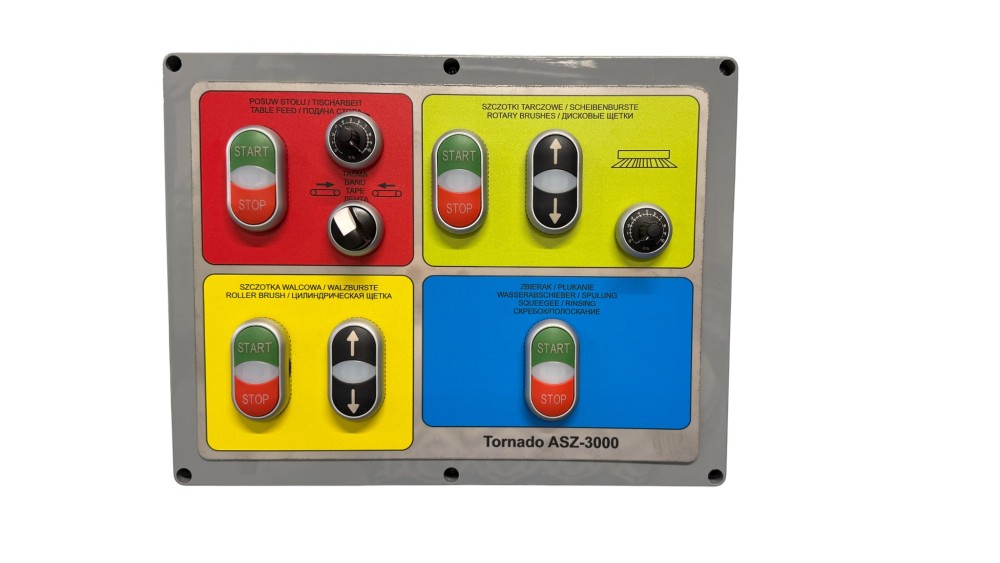

Simple and intuitive main control panel and
auxiliary panel
•
Rug rolling-up function •
Smooth pressure
adjustment of brushes • Adjustable feed rate of
the rug with reversibility
•
Two emergency switches • Signaling lights of the
cleaning section
•
Engines and transmission components hidden behind the protective shields
ensuring 100% safety •
Possibility of visually inspecting the rugs during the
entire washing process • Easily operated by one
person
Technical Data
